H03VH-H — Flat Divisible PVC Cord

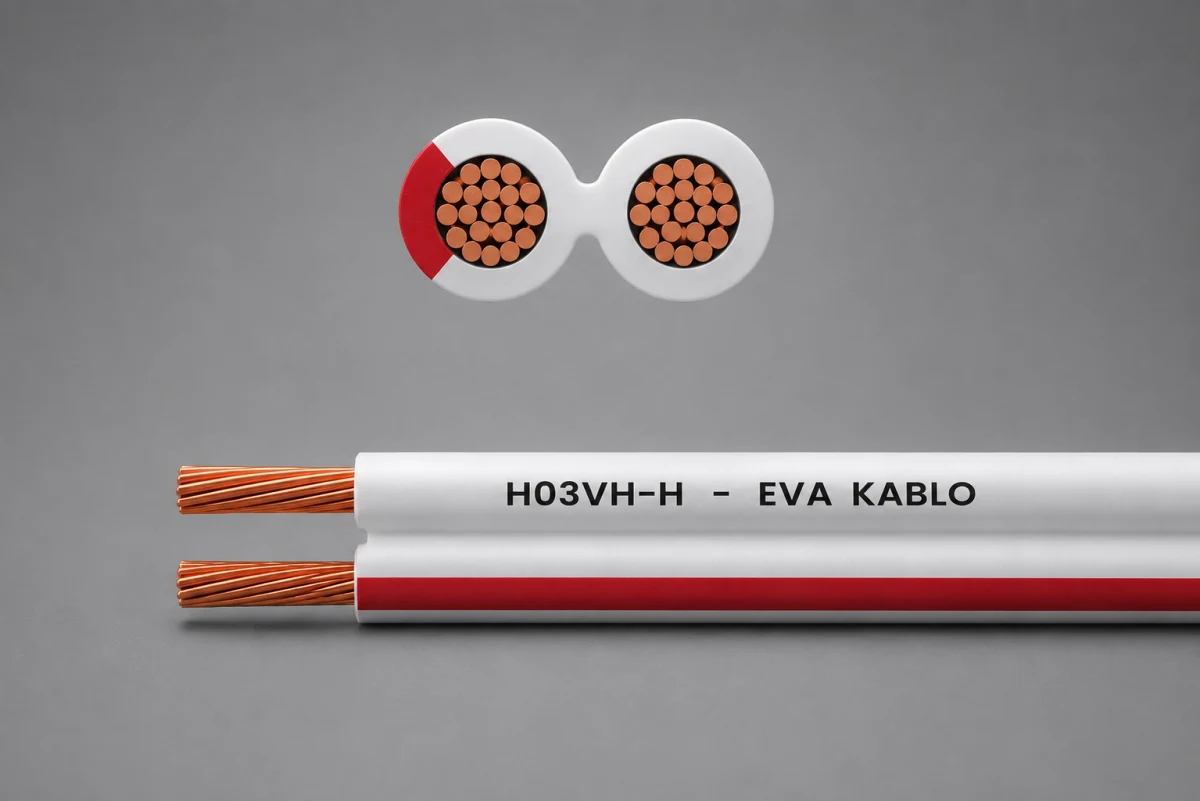

H03VH-H is a flat, divisible flexible cord manufactured by EVA Cable for light-duty appliance connections. Two fine-stranded copper conductors are individually insulated with PVC and joined side by side without an outer sheath. At termination points, the insulated cores can be carefully divided without damaging the insulation.

Typical applications include table lamps, small household appliances and other dry indoor connections exposed to low mechanical stress. Its flat construction supports orderly routing in confined spaces, while the absence of an outer sheath means it is not intended for severe mechanical impact, elevated temperatures or unprotected outdoor use.

The standard working voltage is 300/300 V; sizes marked with an asterisk in the technical table are rated 300/500 V. Conductor size should be selected according to equipment power, current, cord length and operating conditions.
